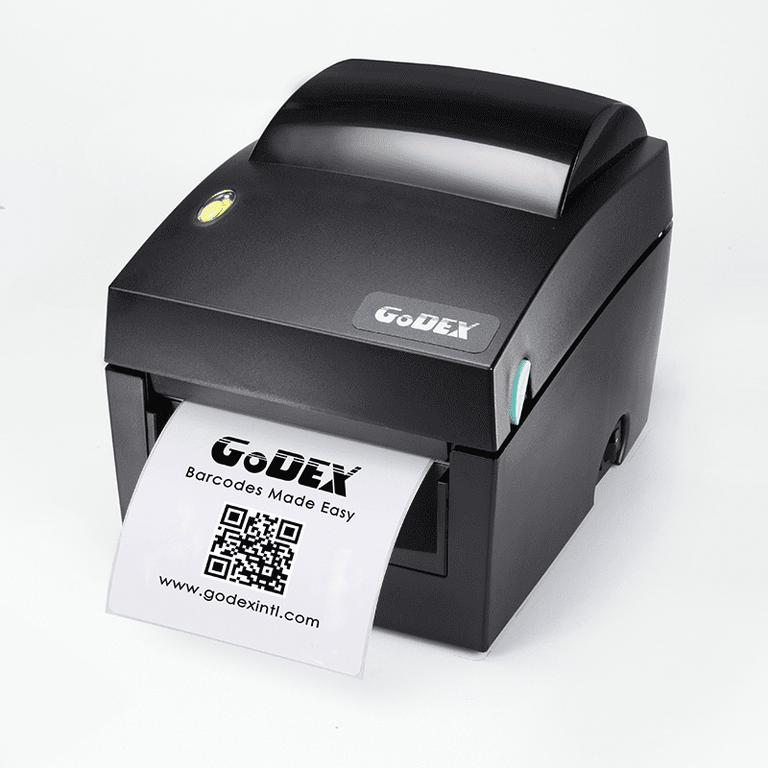

Godex DT4X -Direct Thermal Printer - 4", 203 dpi. USB, RS232, Ethernet

Godex DT4X Product Specification:-

• Print Method: Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Print Speed: 7 IPS (177 mm/s)**
• Print Width: 4.25” (108 mm)
• Print Length: Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
• Processor: 32 bit RISC CPU
• Memory: Flash: 8 MB Flash (4 MB for user storage) / SDRAM: 16MB
• Sensor Type: Adjustable reflective sensor
Fixed transmissive sensor, central aligned
• Printer Language: EZPL, GEPL, GZPL auto switch

Physical Characteristics:

• Height: 6.53” (166 mm)
• Width: 6.61” (168 mm)
• Length: 8.58” (218 mm)
• Weight: 3.3 lbs (1.5 Kg) ,excluding consumables

Media Specifications:

• Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
• Width: Min. 1” (25.4 mm) – Max. 4.64” (118 mm)
• Thickness: Min. 0.003” (0.06 mm) – Max. 0.008” (0.20 mm)
• Label Roll Diameter: Max. 5” (127 mm)
• Core Diameter: 1” (25.4 mm), 1.5” (38.1mm)

Software:

• Label Design Software: GoLabel (for EZPL only)
• Driver: MAC, Linux, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1
• DLL: Win CE, .NET, Android, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1

Fonts:

Resident Fonts:

• Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
• Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Bitmap fonts 8 times expandable in horizontal and vertical directions
• TTTF Fonts: CG Triumvirate™ (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable

Download Fonts:

• Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Asian Fonts: 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
• TTF Fonts: 90°, 180°, 270° rotatable

Barcodes:

• 1-D Bar codes: Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49 and Cadablock

• 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code

Code Pages:

• CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode UTF8, UTF16BE, UTF16LE

Graphics:

• Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces:

• USB 2.0
• Serial port: RS-232 (DB-9)
• IEEE 802.3 10/100Base-Tx Ethernet port (RJ-45)

Control Panel:

• One Tri-colour LED : Power (Green, Orange and Red)
• Function Key : FEED

Real Time Clock:

• Standard

Power:

• Auto Switching 100-240VAC, 50-60Hz.

Environment & Hummidity:

Operation:

• Operation Temperature: 41°F to 104°F (5°C to 40°C)
• Storage Temperature : -4°F to 122°F (-20°C to 50°C)

Humidity:

• Operation: 30-85%, non-condensing
• Storage: 10-90%, non-condensing

Agency Approvals:

• CE (EMC), FCC Class A, CB, CCC, cUL

Options:

• Cutter module
• Label Dispenser
• External label roll holder for 10” (250 mm) O.D. label rolls
• External label rewinder

Notes:

**Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.

Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height, and maximum print speed capability.
