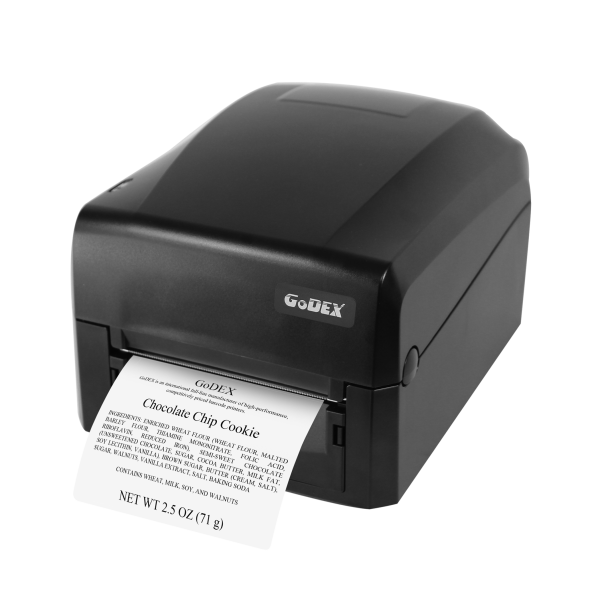

Use the GE300 for all your light to medium duty thermal transfer barcode printing applications.
• Ethernet, Serial and USB ports included
• Uses standard low-cost labels and ribbons
• High cost-effectiveness for large amount printing
• Free labeling software GoLabel / QLabel for easy printing
• 203 DPI model
Product Reference: GP-GE300
Godex GE300 Product Specification:-
• Print Method: Thermal Transfer / Direct Thermal
• Resolution: 203dpi (8 dot/mm)
• Print Speed: 5 IPS (127 mm/s)
• Print Width: 4.25” (108 mm)
• Print Length: Min. 0.16” (4 mm)** – Max. 68” (1727 mm)
• Processor: 32-bit RISC CPU
• Memory: 8 MB Flash (4 MB for user storage) / 16 MB SDRAM
• Sensor Type: Adjustable reflective sensor (full range). Fixed transmissive sensor
• Printer Language: EZPL, GEPL, GZPL auto switch, GDPL optional
Media Specifications:
• Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
• Width: Min. 1” (25.4 mm) – Max. 4.64” (118 mm)
• Thickness: Min. 0.003” (0.076 mm) Max. 0.008” (0.20 mm)
• Label roll diameter: Max. 5” (127 mm)
• Core diameter: 1″ & 1.5″ (25.4 mm & 38.1 mm)
Ribbon Specification:
• Types: Wax, wax/resin, resin
• Length: 360’ (110 m)
• Width: Min – 1.18” (30 mm) – Max. 4.33” (110 mm)
• Ribbon roll diameter: 1.57” (40 mm)
• Core diameter: 0.5” (12.7 mm)
Software:
• Label design software: GoLabel (for EZPL only)
• Driver: MAC, Linux, Windows 7, 8.1 and 10, Windows Server 2012 and 2016
• DLL: Win CE, NET, Android, Windows Mobile, Windows XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
Resident Fonts:
• Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A&B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
• TTF fonts：CG Triumvirate™ (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable
Download Fonts:
• Bitmap fonts: 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Asian fonts: 6×16, 24×24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions
• TTF fonts: 90°, 180°, 270° rotatable, (Bold / Italic / Underline)
Barcodes:
• 1D Barcodes: China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5, Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart
• 2D Barcodes: Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
Code Pages:
• CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869
• WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
• Unicode UTF8, UTF16BE, UTF16LE
Graphics:
• Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

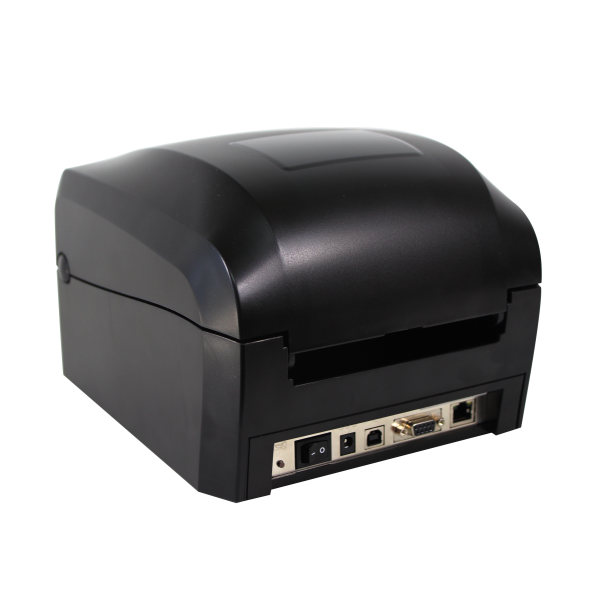

Interfaces:
• Serial port: RS-232 (DB-9)
• USB 2.0
• Ethernet 10/100 Mbps
Control Panel:
• One Tri-color LED: Power (Green, Orange and Red)
• Function Key: FEED
• Calibration Button
Power:
• Switching power 100-240VAC, 50-60Hz input
Environment:
• Operation temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -4°F to 122°F (-20°C to 50°C)
Hummidity:
• Operation: 30-85%, non-condensing.
• Storage: 10-90%, non-condensing.
Agency Approvals:
• CE (EMC), FCC, CB, UL, cUL, CCC
Options:
• Cutter (Dealer Install)
• External label unwind Stand
• External label rewinder
• Bluetooth
• Wireless LAN (IEEE 802.11 b/g/n)
• Real Time Clock (RTC) (Dealer Install)
• Left Alignment Printing Mechanism (Factory Install)
Physical Characteristics:
• Length: 11.0” (280 mm)
• Height: 7.7” (195mm)
• Width: 8.3” (210 mm)
• Weight: 5.9 lbs (2.7 Kg), excluding consumables
Notes:
*Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners.
**Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height, and maximum print speed capability.
