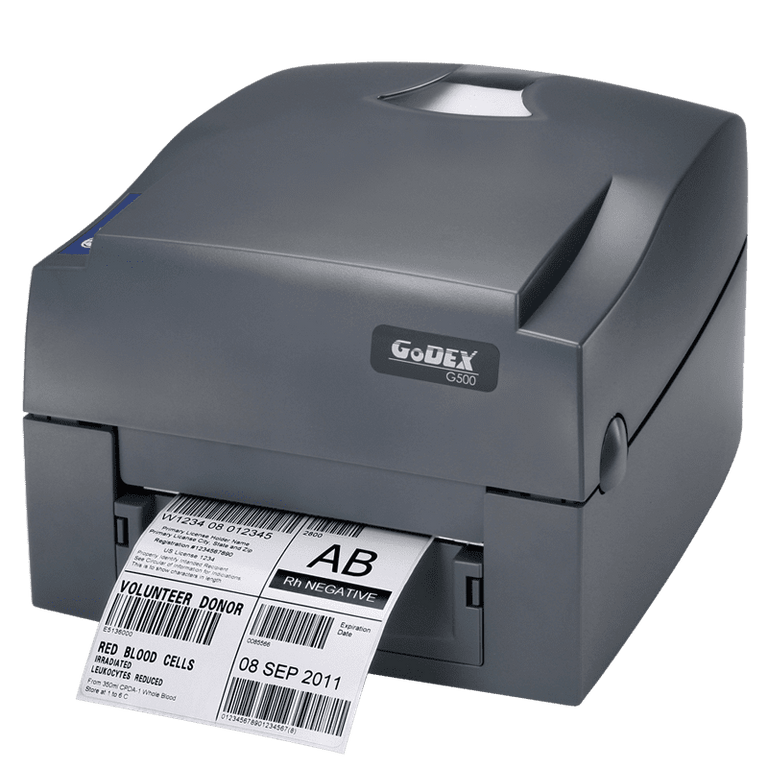

“Twin-Sensor Technology” makes the G500 perfect for printing on all types of specialty materials especially for retail and industrial applications.
• 300 meter ribbon plus the optional label stand provides maximum printing volume
• “Twin-Sensor” technology allows you to use a broad range of labels
• Strong and stable mechanism design for long term reliability
• 203 DPI model
Product Reference: G500-ETH
Godex G500 Product Specification:-
• Print Method: Thermal Transfer / Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Max. Print Speed: 5IPS (127 mm/s)
• Max. Print Width: 4.25″ (108 mm)
• Print Length: Min. 0.16” (4 mm)**; Max. 68” (1727 mm)
• Processor: 32-bit RISC CPU
• Memory: 8MB Flash (4MB for user storage) / 16MB SDRAM
• Sensor Type: Adjustable reflective sensor. Fixed transmissive sensor, central aligned
• Printer Language: EZPL, GEPL, GZPL auto switch
Media Specifications:
• Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
• Width: 1” (25.4 mm) Min. – 4.64” (118 mm) Max.
• Thickness: 0.003” (0.06 mm) Min. – 0.01” (0.25 mm) Max.
• Label roll diameter: Max. 5” (127 mm)
• Core diameter: 1”, 1.5”, 3″ (25.4 mm, 38.1 mm, 76.2 mm)
Ribbon Specification:
• Types: Wax, wax/resin, resin
• Length: 981’ (300 m)
• Width: 1.18” Min – 4.33” (30 mm – 110 mm) Max
• Ribbon roll diameter: 2.67“ (68 mm)
• Core diameter: 1” (25.4 mm)
Software:
• Label design software: QLabel-IV (for EZPL only), GoLabel (for EZPL only)
• Driver: Windows 2000, XP, Vista, 7, 8,Windows Server 2003 & 2008
• DLL: Windows 2000, XP and Vista
Resident Fonts:
• Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
• Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Bitmap fonts 8 times expandable in horizontal and vertical directions
• Scalable fonts 90°, 180°, 270° rotatable
Download Fonts:
• Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
• Scalable fonts 90°, 180°, 270° rotatable
Barcodes:
• 1D Barcodes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
• 2D Barcodes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
Code Pages:
• CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
• WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
• Unicode (UTF8, UTF16)
Graphics:
• Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

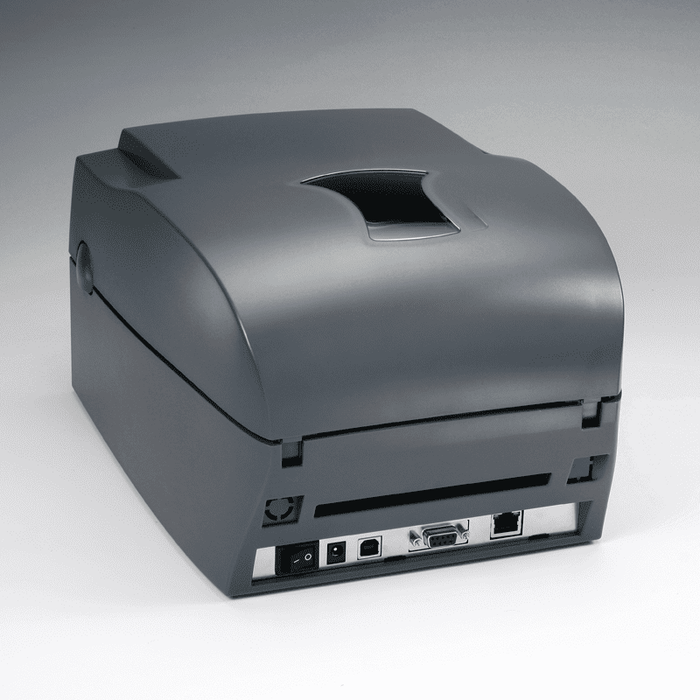

Interfaces:
• USB + Serial Port + Ethernet
Control Panel:
• Two bi-color status-LEDs: Ready, Status
• Control key: FEED
Power:
• Auto Switching 100-240VAC, 50-60Hz
Environment:
• Operation temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -4°F to 122°F (-20°C to 50°C)
Hummidity:
• Operation: 30-85%, non-condensing.
• Storage: 10-90%, non-condensing.
Agency Approvals:
• CE(EMC), FCC Class A, CB, CCC, cUL
Options:
• Cutter Module
• Label Dispenser
• External label roll holder for 10” (250 mm) O.D. label rolls
• External label rewinder
Physical Characteristics:
• Length: 11.2” (285 mm)
• Height: 6.8” (171 mm)
• Width: 8.9” (226 mm)
• Weight: 6 lbs (2.72Kg) ,excluding consumables
