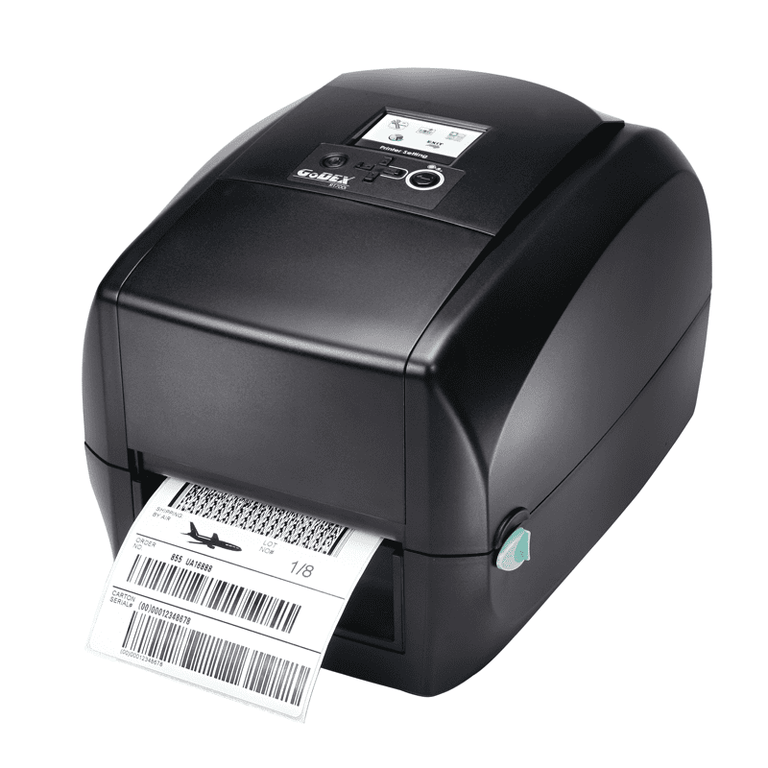

Godex RT730i Direct Thermal / Thermal Transfer, 4" Desktop Printer with colour display. 300dpi. USB (H/D), RS232, Ethernet.

Godex RT730i Product Specification:-

• Print Method: Thermal Transfer / Direct Thermal
• Resolution: 300 dpi (12 dots/mm)
• Max. Print Speed: 5 IPS (127 mm/s)
• Max. Print Width: 4.16″ (105.7mm)
• Print Length: Min. Min. 0.16” (4 mm); Max. 30” (762 mm)
• Processor: 32-bit RISC CPU
• Memory: 8MB Flash (4MB for user storage) / 16MB SDRAM
• Sensor Type: Adjustable reflective sensor. Fixed transmissive sensor, central aligned / Adjustable reflective sensor (full range)
• Printer Language: EZPL, GEPL, GZPL auto switch

Media Specifications:

• Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
• Width: 1” (25.4 mm) Min. – 4.64” (118 mm) Max.
• Thickness: 0.003” (0.06 mm) Min. – 0.01” (0.2 mm) Max.
• Label roll diameter: Max. 5” (127 mm)
• Core diameter: 1”, 1.5″ (25.4 mm, 38.1 mm)

Ribbon Specification:

• Types: Wax, wax/resin, resin
• Length: 981’ (300 m)
• Width: 1.18” (30 mm) Min. – 4.33” (110 mm) Max.
• Ribbon roll diameter: 2.67“ (68 mm)
• Core diameter: 1” (25.4 mm)

Software:

• Label design software: GoLabel (for EZPL only)
• Driver & DLL: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008

Resident Fonts:

• Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
• Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Bitmap fonts 8 times expandable in horizontal and vertical directions
• Scalable fonts 90°, 180°, 270° rotatable

Download Fonts:

• Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
• Scalable fonts 90°, 180°, 270° rotatable

Barcodes:

• 1D Barcodes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
• 2D Barcodes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code

Code Pages:

• CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
• WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
• Unicode (UTF8, UTF16)

Graphics:

• Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces:

• USB 2.0
• Serial port: RS-232 (DB-9)
• Ethernet 10/100 Mbps

Control Panel:

• Color TFT LCD with navigation button
• Power on/off button
• Calibration button

Real Time Clock:

• Standard

Power:

• Auto Switching 100-240VAC, 50-60Hz

Environment:

• Operation temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -4°F to 122°F (-20°C to 50°C)

Hummidity:

• Operation: 30-85%, non-condensing.
• Storage: 10-90%, non-condensing.

Agency Approvals:

• CE(EMC), FCC Class A, CB, CCC, cUL

Options:

• Bluetooth module
• Guillotine Cutter
• Label Dispenser
• External label roll holder for 10” (250 mm) O.D. label rolls
• External label rewinder

Physical Characteristics:

• Length: 11.0” (280 mm)
• Height: 7.3” (186 mm)
• Width: 8.3” (210 mm)
• Weight: 6.6 lbs (3.0Kg) ,excluding consumables
