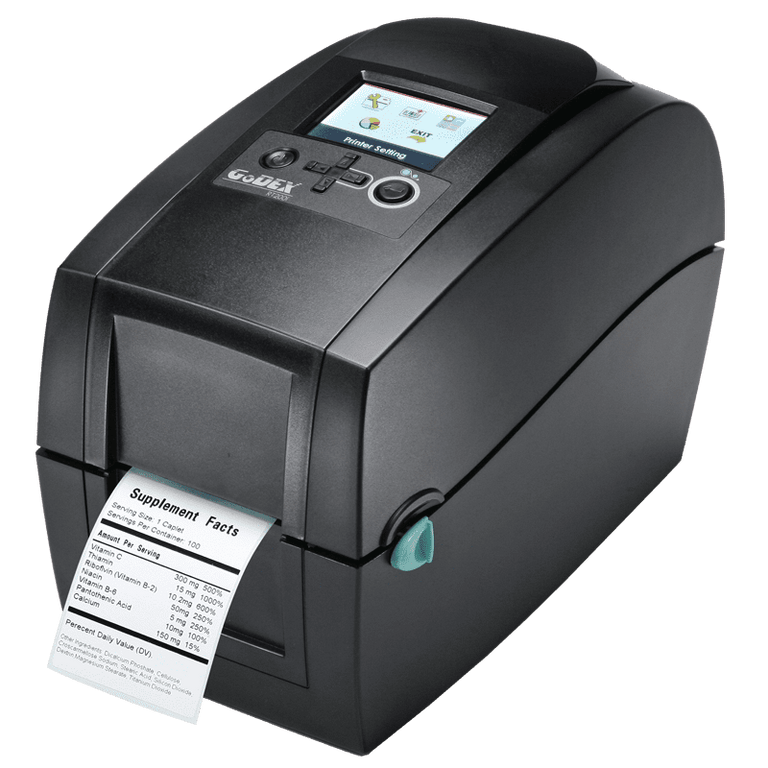

Godex RT200i Direct Thermal / Thermal Transfer, 2" Desktop Printer with Display. 203dpi. USB Host, RS232, Ethernet.
Product Description
The RT200i barcode printer is packed with performance enhancing features that makes it the most powerful 2” thermal transfer printer
• Color LCD and operation panel for easy and intuitive operation
• Ethernet, Serial and USB ports are standard features adding flexibility and power
• Maximum 7 IPS printing speed
• USB host for extension memory and standalone operation
• Compact size and modern clam-shell design
• Innovative calibration button makes Label Calibration simple and fast
• EZPL, GEPL and GZPL language support
• Free GoLabel label design software
• 203 DPI model
Product Reference: GP-RT200i
Specification
Godex RT200i Product Specification:-
• Print Method: Thermal Transfer / Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Max. Print Speed: 7IPS (177 mm/s)
• Max. Print Width: 2.12″ (54mm)
• Print Length: Min. 0.16” (4 mm); Max. 68” (1727 mm)
• Processor: 32-bit RISC CPU
• Memory: 8MB Flash (4MB for user storage) / 16MB SDRAM
• Sensor Type: Fixed transmissive sensor and reflective sensor, central aligned / Adjustable reflective sensor (full range)
• Printer Language: EZPL, GEPL, GZPL auto switch
Media Specifications:
• Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
• Width: 0.6” (15 mm) Min. – 2.36” (60 mm) Max.
• Thickness: 0.003” (0.06 mm) Min. – 0.008” (0.20 mm) Max.
• Label roll diameter: Max. 5” (127 mm)
• Core diameter: 1”, 1.5” (25,4 mm, 38,1 mm)
Ribbon Specification:
• Types: Wax, wax/resin, resin
• Length: 360’ (110 m)
• Width: 2.20” (56mm) – 2.32” (59mm)
• Ribbon roll diameter.: 1.57“ (40 mm)
• Core diameter: 0.5” (12.7 mm)
Software:
• Label design software: GoLabel (for EZPL only)
• Driver & DLL: Windows 2000, XP, Vista, 7, 8,Windows Server 2003 & 2008
Resident Fonts:
• Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
• Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Bitmap fonts 8 times expandable in horizontal and vertical directions
• Scalable fonts 90°, 180°, 270° rotatable
Download Fonts:
• Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
• Scalable fonts 90°, 180°, 270° rotatable
Barcodes:
• 1D Barcodes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock
• 2D Barcodes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code
Code Pages:
• CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
• WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257
• Unicode (UTF8, UTF16)
Graphics:
• Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces:
• USB 2.0
• Serial port: RS-232 (DB-9)
• Ethernet 10/100 Mbps
• USB Host
Control Panel:
• Colour TFT LCD with navigation button
• Power on/off button
• Calibration button
Power:
• Auto Switching 100-240VAC, 50-60Hz
Environment:
• Operation temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -4°F to 122°F (-20°C to 50°C)
Hummidity:
• Operation: 30-85%, non-condensing.
• Storage: 10-90%, non-condensing.
Agency Approvals:
• CE(EMC), FCC Class A, CB, CCC, cUL
Options:
• USB Device + RS232 interfaces (factory install)
• Guillotine Cutter
• Label Dispenser
• External label roll holder for 10” (250 mm) O.D. label rolls
• External label rewinder
Physical Characteristics:
• Length: 9.7” (254 mm)
• Height: 6.9” (175 mm)
• Width: 5.3” (136 mm)
• Weight: 4.4 lbs (2 Kg) ,excluding consumables
